HIGH QUALITY AUTOMATIC NEST with side belts

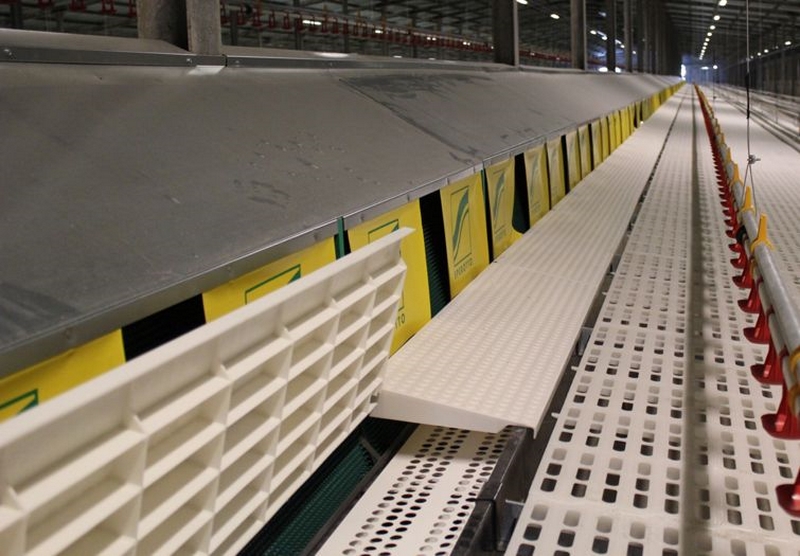

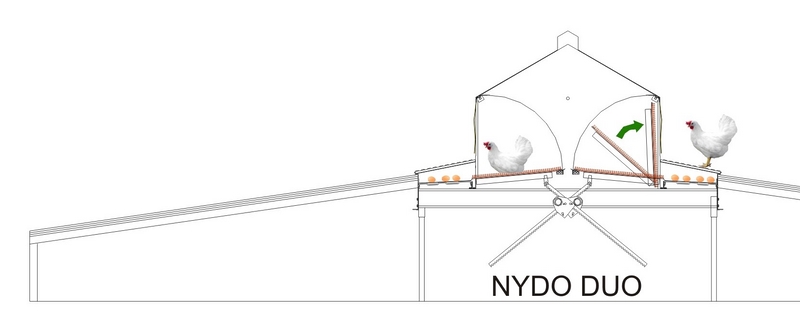

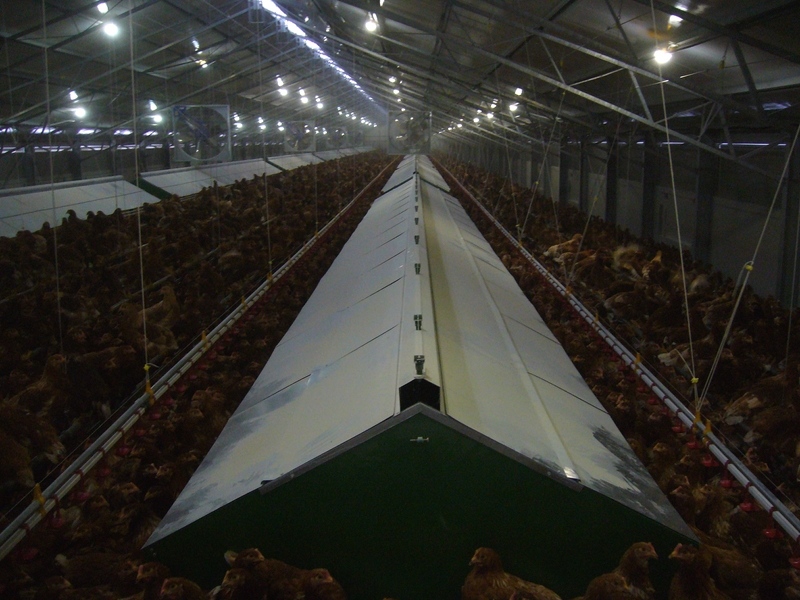

NYDO DUO is our high quality community nest for layer hens consisting of modules of 230x160 cm with four holes. It has two lateral conveyor belts 250 mm wide each.
Look at this VIDEO.

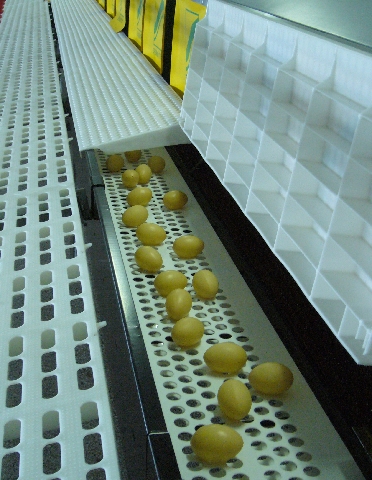

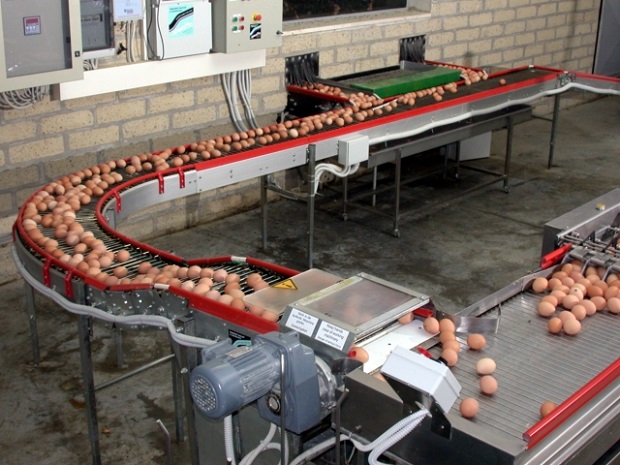

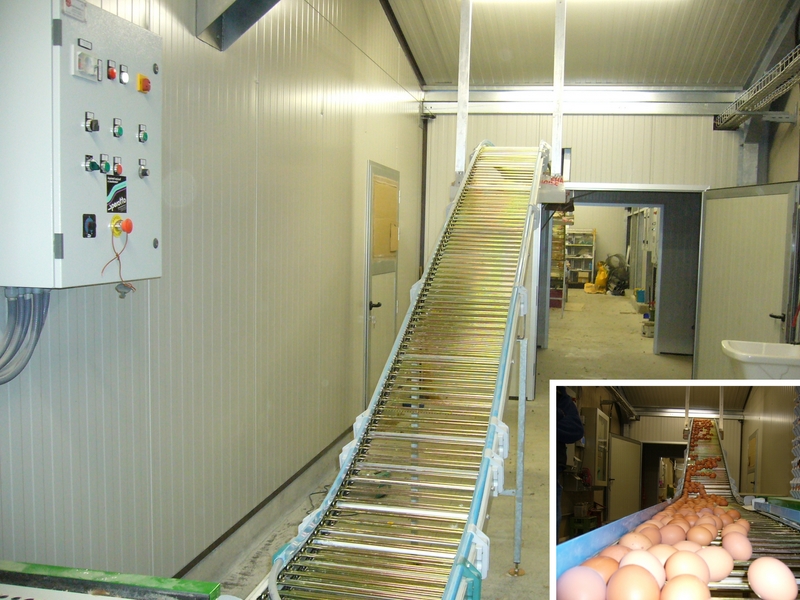

The special characteristics of this product make it an ideal location for laying eggs for consumption. When the nest closes, the eggs roll delicately onto the perforated polypropylene conveyor belt (VIDEO). Then, thanks to a variable-speed drive, the eggs are automatically transferred to a collection table covered with a soft PVC layer.
The main structure of Nydo Duo is made of powder-coated galvanized steel and stainless steel supporting legs which guarantee long life against poultry droppings corrosion.

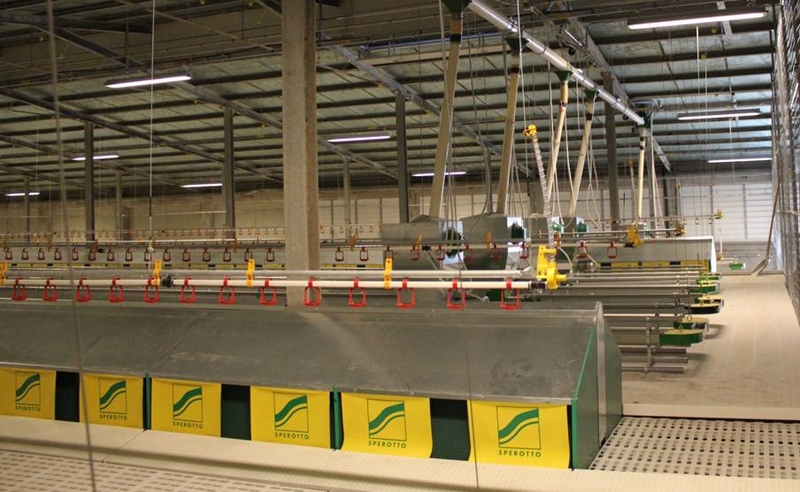

The Central ridge vent of the nest presents some holes for a good ventilation.
The illuminated hole provides an attractive and comfortable environment for the hen.
The 18 mm thick partitions are made of waterproof, melamine coated wood.
All these characteristics make Nydo Duo a long lasting and hygienic product.
The structure of the plastic roosts allows the animal safe and natural movements. The frame is made of hot-dip galvanized steel.
The roost is very easy to assemble and disassemble thanks to its simple fastenings.

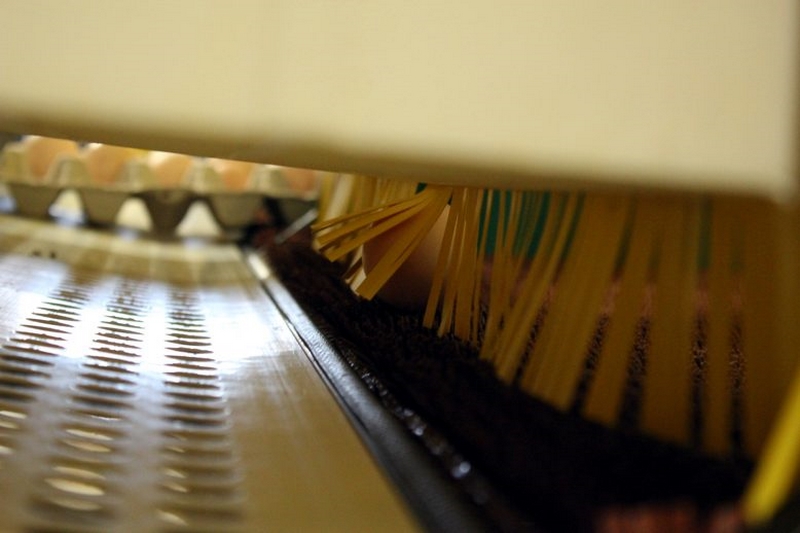

Moreover, the roller brushes guarantee that the conveyor belts remain clean.

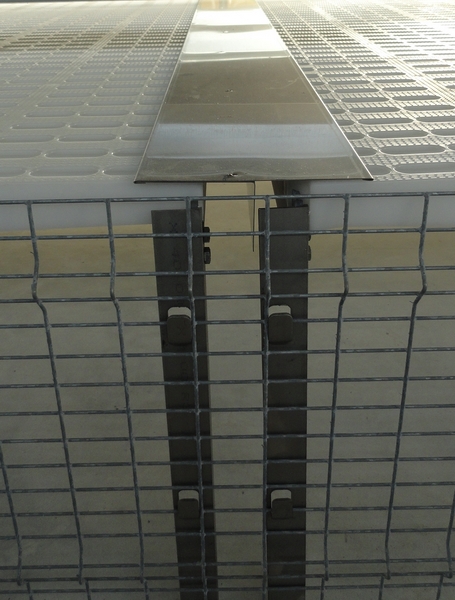

A hot-dip galvanized steel protective mesh closes off access under the roost.
Through the control panel, it is possible to regulate the speed of the conveyor belts and automatically program the closing, opening and lighting of the nests.
